The compartments

16 compartments, each signed by its own dopamine input: 8 appetitive, 7 aversive, 1 unsigned.

A render of one mushroom body split into its sixteen compartments, good ones orange, bad ones blue, each labelled with its sign
  • CA0
  • a'1-
  • a'2-
  • a'3-
  • a1+
  • a2-
  • a3-
  • b'1+
  • b'2+
  • b1+
  • b2+
  • g1-
  • g2-
  • g3+
  • g4+
  • g5+

+ appetitive, - aversive, 0 no teaching signal.

The rule

Count the PAM and PPL1 presynapses inside a compartment; the sign of their ratio is its sign. Under 100 presynapses, no sign.

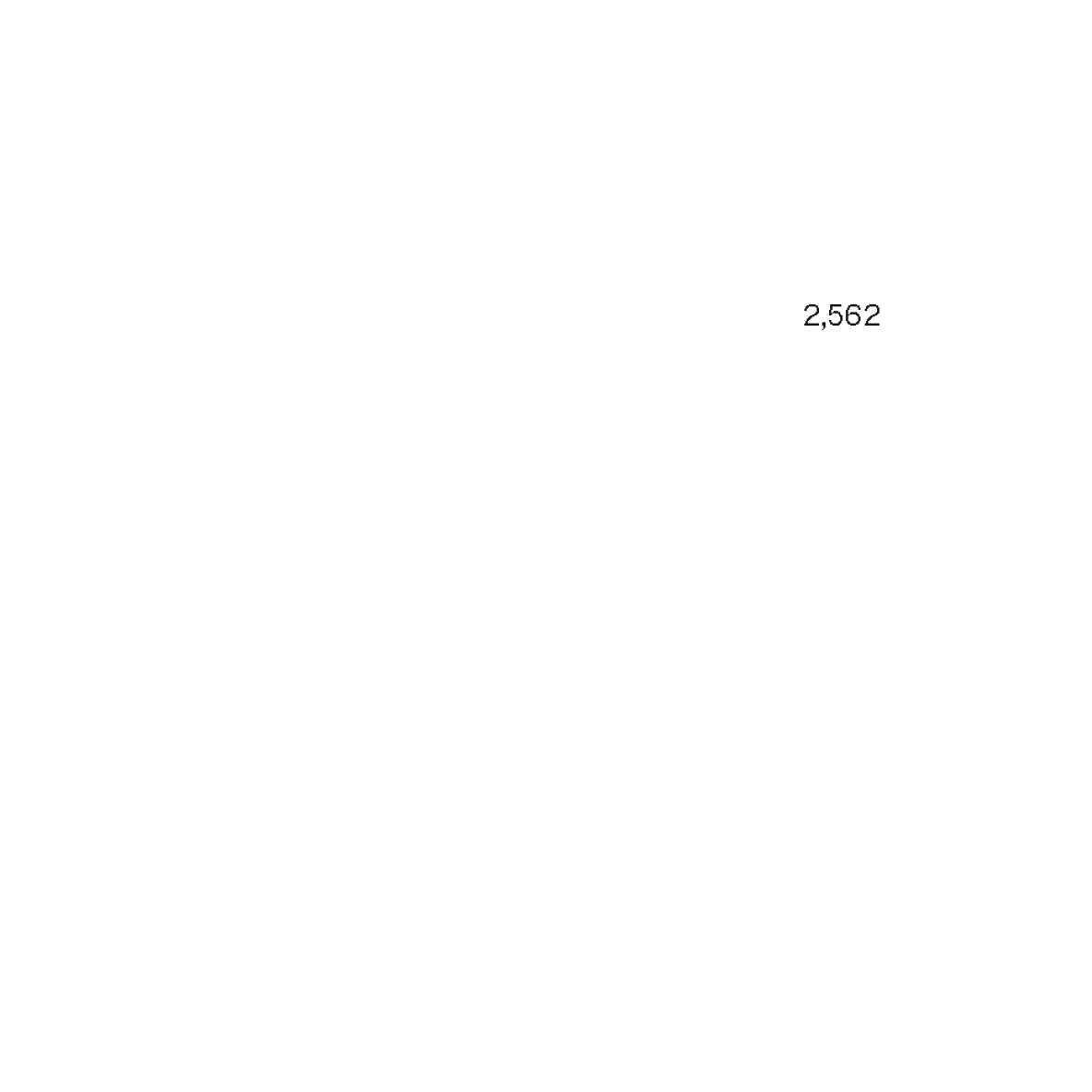

A close-up of one compartment: a long solid bar for its PAM presynapses over a short dithered bar for its PPL1 presynapses, then the log ratio, the tanh strength and the sign derived from them.
One compartment, close up. The calyx has 1 dopaminergic presynapse, so it gets none.

Every sign

Presynapses counted in neuPrint male-cns:v1.0, one row per compartment.

A signed bar chart with one row per mushroom body compartment: PAM and PPL1 presynapse counts on the left, then a bar that runs right for appetitive and left, dithered, for aversive, with the log ratio at the far right.

The counts behind it

The log ratio carries a pseudo-count of one on each side; MBONs are as the build assigned them.

compartmentsignPAM presynapsesPPL1 presynapseslog ratioMBONs
CA0no teaching signal01-12
a'1-aversive1171,054-3.1606
a'2-aversive221,388-5.9165
a'3-aversive41,175-7.8788
a1+appetitive2,5624052.6584
a2-aversive11,642-9.6827
a3-aversive02,433-11.2494
b'1+appetitive4,2406062.8059
b'2+appetitive12,659112.6286
b1+appetitive6,298397.2992
b2+appetitive4,927118.6824
g1-aversive2463,181-3.6879
g2-aversive1,5954,190-1.39316
g3+appetitive5,1252514.3465
g4+appetitive10,871707.2598
g5+appetitive6,396138.8362
